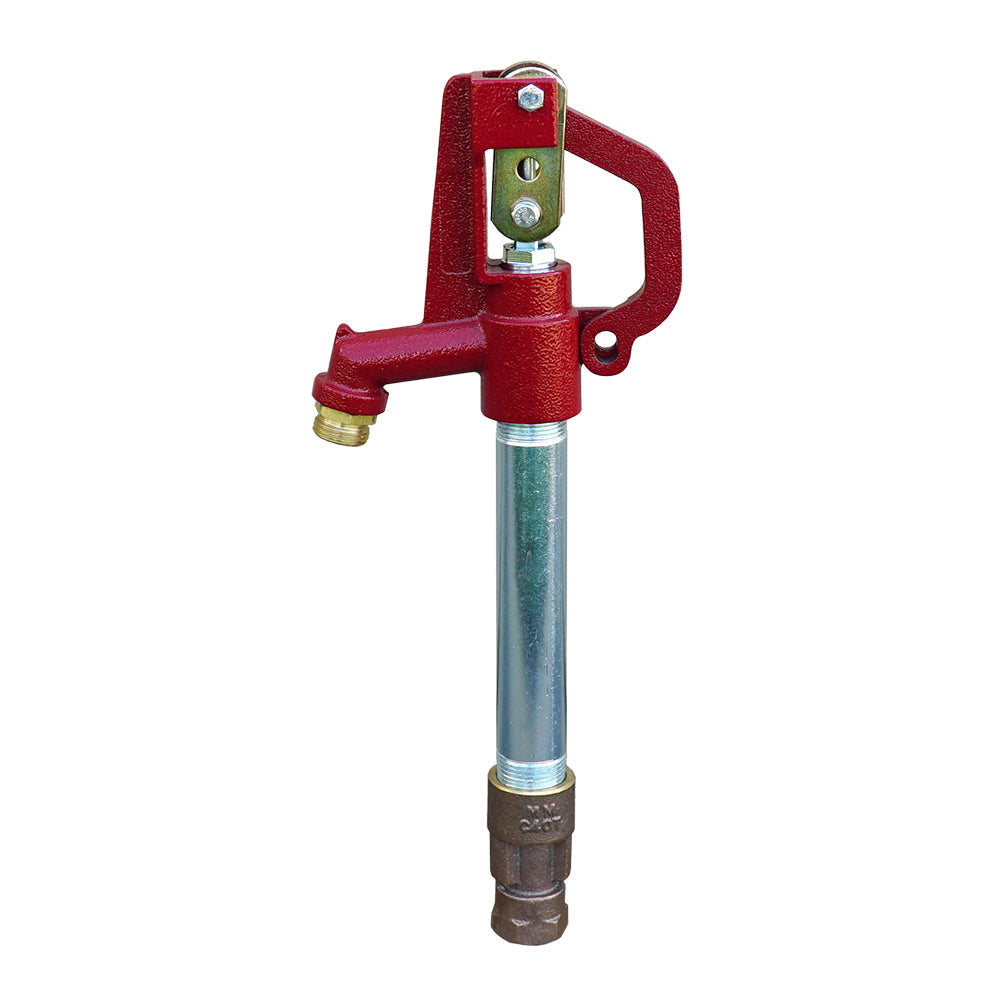

Merrill E-5000 No-Lead Frost-Proof Yard Hydrant

The Merrill E-5000 Yard Hydrant is designed with pivot connector in place of commonly used set screws. A pivot connector lengthens the adjustability life of the hydrant because it will not rust into place like a set screw. The E-5000 comes in two packing gland options; standard and metal. The metal packing gland offers an extremely quick removal time, dramatically shortening the time required to check or replace the hydrant's plunger. Merrill's self-lubricating one-piece plunger offers an extended life expectancy with minimal sticking and bonding. The use of a double bypass valve body enables the E-5000 to provide a high water flow rate for an economical price. Created with cold weather in mind, the incorporated drain hole allows water to drain out creating confidence in year-round use in all climates.

Full Lever Control - Placement of handle sets flow control

1040 Steel Draw Straps - Reduced wear of straps and eliminates side pull on operating rod

Operating Rod - Smooth galvanized surface maximizing the life of the packing seal

Heavy-Duty Solid Hose Adapter - Threaded for standard 3/4" hose coupling

Heavy Cast Iron Head - Time proven design for years of use

Pivot Connector - Easily adjusted for years without the rusted and stuck set screw concern

Tough Packing Gland - Shortens time required for plunger removal Option: Metal packing gland available in EM-Series

No Exposed Pipe Threads - No exposed steel threads on pipe to rust

One-Piece Plunger - Uses double seal design for a shutoff seal you can depend on

Self-Lubricating Plunger - Diminishes concern over sticking and bonding, creating a longer life

Double Bypass Valve Body - Allows for a high water flow rate

Locking Eye - Hydrant can be locked in the off position

Simplest Hydrant to Service - No need to dig up hydrant to inspect plunger. Shut off water supply. Remove lever handle, loosen packing gland in head casting and pull up rod with plunger, or simply unscrew head and pull out rod and plunger.
